CMT Sandwich Construction Polyimide Film
Specification
CMT sandwich structure polyimide film refers to the top and bottom two layers of polyimide film, metal aluminum as an intermediate layer, three layers overlap together. The CMT Polyimide Film not only has the characteristics of polyimide film but also has the shielding effect and can reflect radar waves. At the temperature of 320℃-350℃ and pressure of 20kgf/ c㎡ will produce viscosity, can be pressed with other materials.
Features:
Corrosion resistant, environment-friendly with halogen free, highest UL-94 flammability rating:V-0.
Structure:
Parameters
| Property | Unit | CMT101 | Test Method | |
| Thickness | mm | 30±3 | ASTM D374 | |
| Width | mm | 500 | ASTM D374 | |
| Tensile Strength | MD | Mpa | ≥150 | ASTM D882 |
| TD | Mpa | ≥145 | ASTM D882 | |
| Elongation | MD | % | ≥45 | ASTM D882 |
| TD | % | ≥45 | ASTM D882 | |
| Surface Density | g/㎡ | ≤54 | ASTM D1505 | |
| Dielectric Strength | KV | ≥4.0 | ASTM D149 | |
| CBDF Glass Transition Temperature | ℃ | 217 | ASTM D3418 | |
| Thermal Property | CBDF | Temperature in 320℃-350℃ it can adhesive with other materials, pressure 20kgf/ c㎡ | ||
Remark: The above data are for reference only.

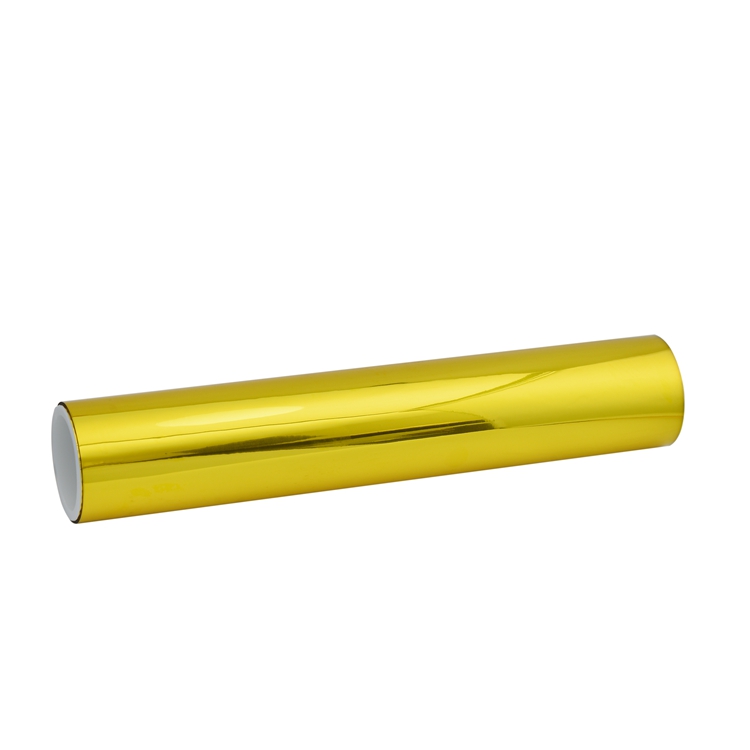

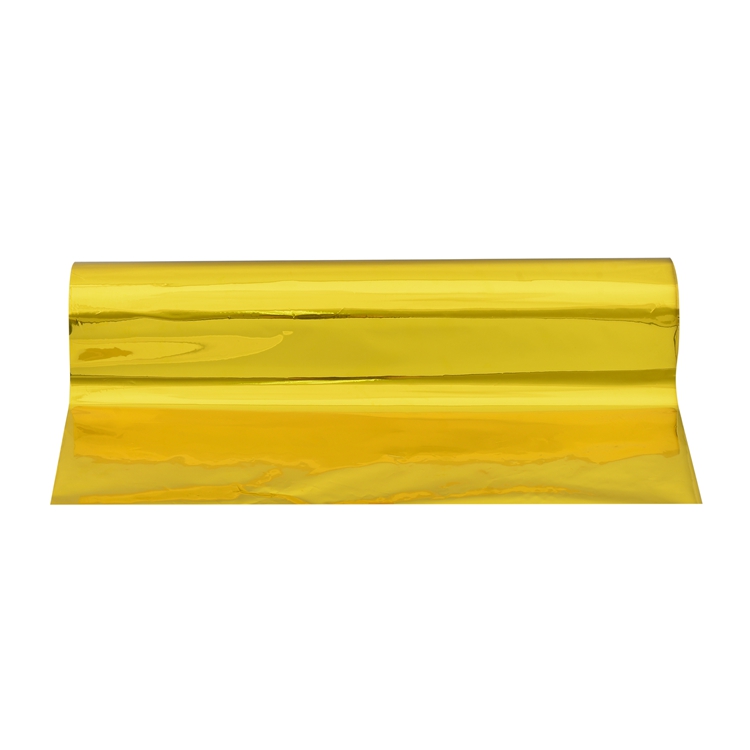

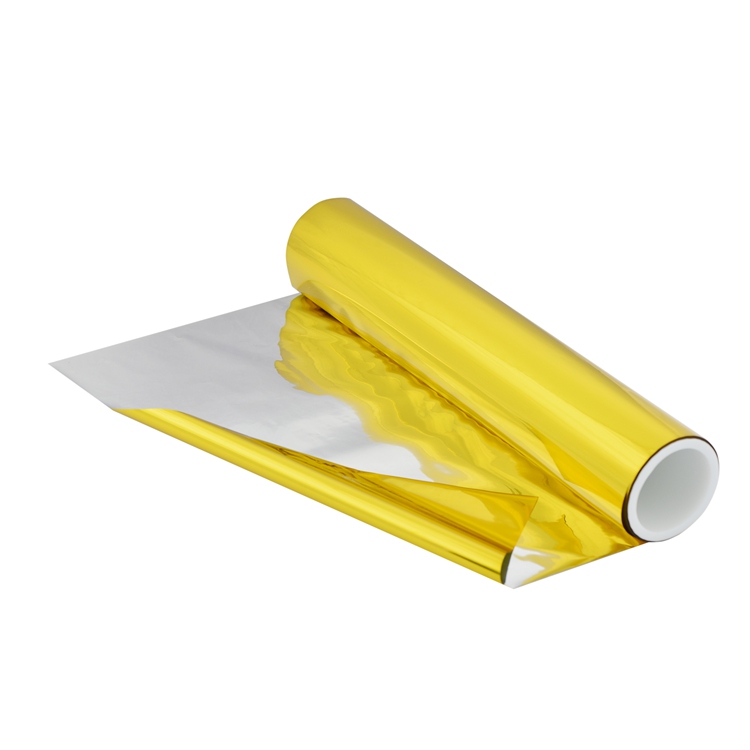

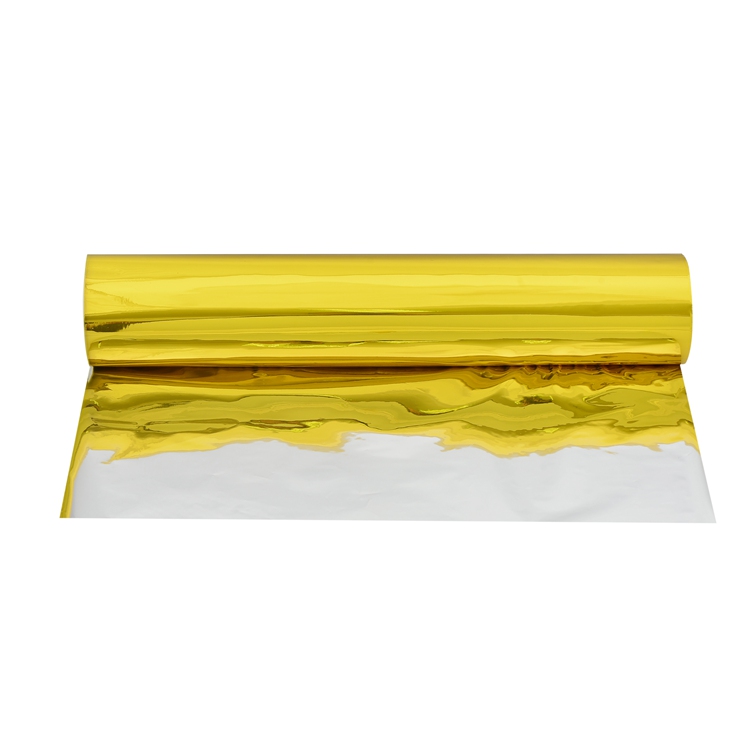

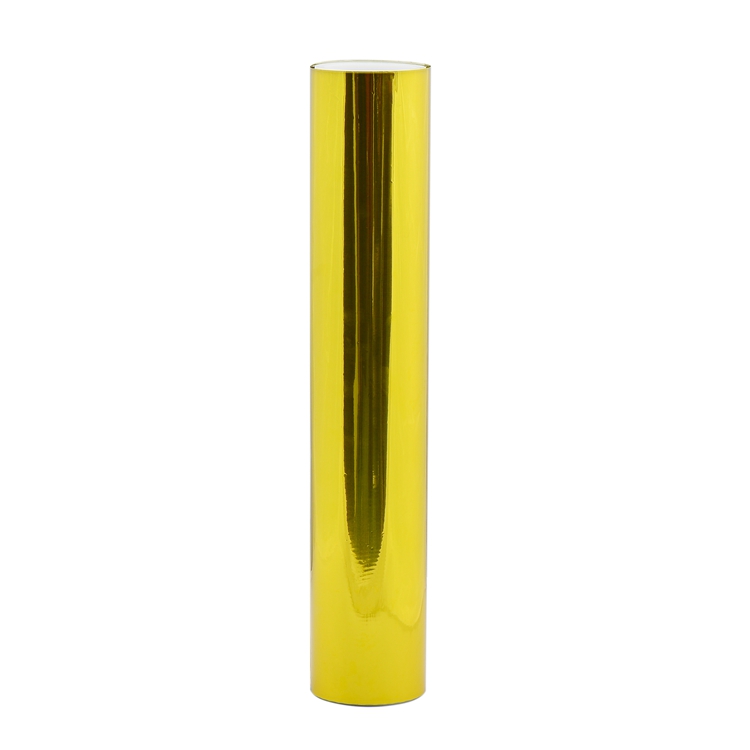

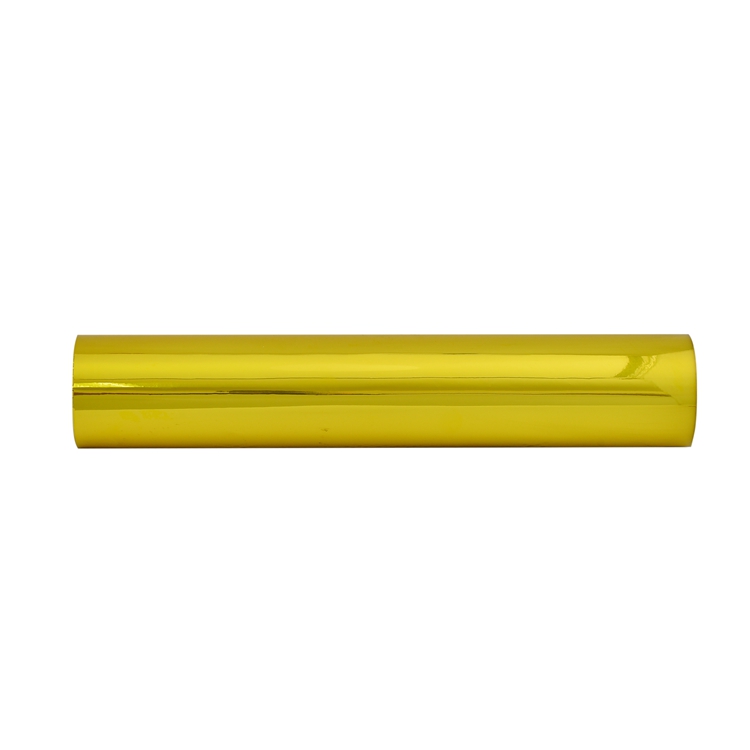

Pictures
Application
The sandwich construction polyimide film is suitable for Radiation resistant of inner space suit, EMI shielding, seal material, electromagnetic shielding tape, flexible etching wire.
