PTCU Copper Foil Coating PI film
Specification
The PTCU copper foil coating PI film produced by our company is coated with polyimide on one or both sides of the copper foil, without any adhesive, it can work for a long time at more than 200℃. The PTCU PI film has excellent performance for electronic shielding. We can handle different shielded thermal conductive insulation materials according to the needs of customers. The thickness of copper foil can be 3um to 200um, and the thickness of the PI coating can be 5um to 25um. We can process various other metal foil or sheet, which can be customized according to customers' requirements.
Features:
High temperature resistance, high insulation, flame retardant, impact resistance, bending resistance, solvent resistance, radiation resistance.
Structure:
Parameters
Property | Parameter | Test Value |
Copper Foil | Thickness | 6μm |
PI Polyimide Film | Thickness | 6μm |
Dielectric Strength of PI | 1.5KV | |
Peel strength | ≥10N/cm2 | |
Temperature Resistance | Drying at 280℃ for 30 minutes without foaming or shedding. No bubble after 30mins through Tin furnace(280℃) | PASS |
Solvent Resistance | Salt spray test | Corrosion Resistant |
Bend Performance | 180° | 100Times |
Adhesive Force | Cross-cut Test 1 MM | Non-shedding |
Abrasive Resistance | Paper bag wear-resisting | 10000Times |
Remark: The above data are for reference only.

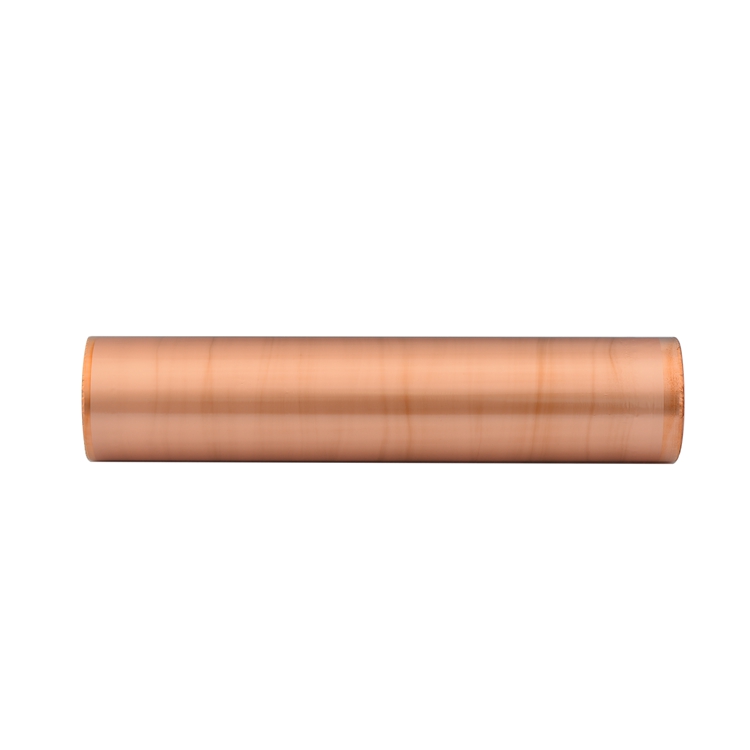

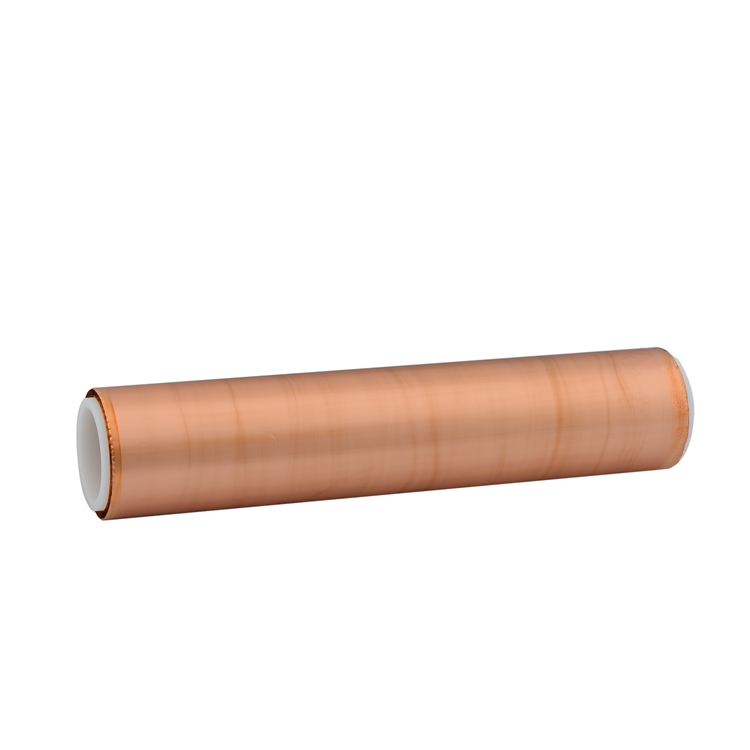

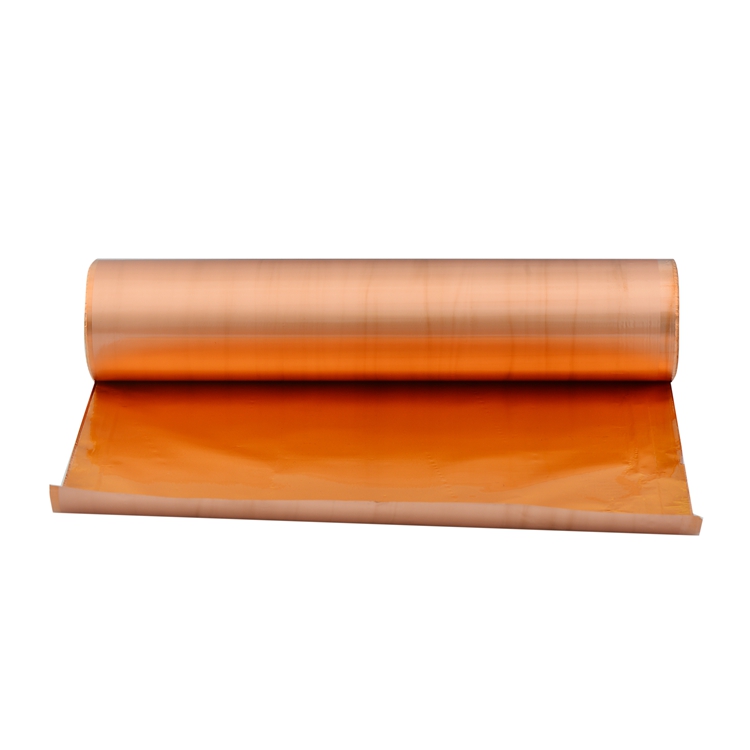

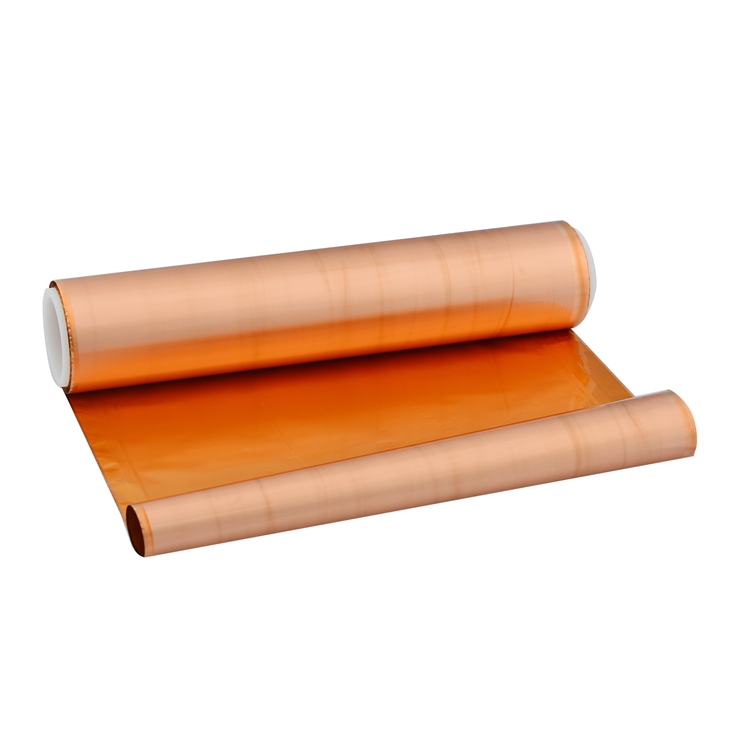

Pictures
Application
The PTCU coating PI film used for High temperature shielding insulation, 5G Heat dissipation, coating with Epoxy as a shielding.
