PTAL Aluminum coating PI film
Specification
PI coating aluminum foil (PTAL) is single side or double side coated with polyimide on the aluminum foil, without any adhesives can long-term work in over 200℃ temperature, PTAL Aluminum coating PI film excellent for electromagnetic shielding performance. According to customer needs for different shield thermal insulation material processing, the thickness of aluminum foil can be 10 um to 200 um, PI coating thickness can be from 5 to 25 um um. We can apply it to other metal foil and customize it according to customer's requirements.
Features：
High temperature resistance, high insulation, flame retardant, impact resistance, bending resistance, solvent resistance, radiation resistance.
Structure：
Parameters
| Property | Parameter | Test Value1 | Test Value2 |
Aluminum Foil | Thickness | 25μm | 10μm |
PI Polyimide Film | Thickness | 15μm | 15μm |
Dielectric Strength of PI | 3.0KV | 3.0KV | |
Peel Strength | ≥10N/cm2 | ≥10N/cm2 | |
Temperature Resistance | Drying at 280℃ for 30 minutes without foaming or shedding. No bubble after 30mins through Tin furnace(280℃) | PASS | PASS |
Solvent Resistance | Salt spray test | Corrosion Resistant | Corrosion Resistant |
Bend Performance | 180° | 100Times | 100Times |
Adhesive Force | Cross-cut Test 1 MM | Non-shedding | Non-shedding |
Abrasive Resistance | Paper bag wear-resisting | 10000Times | 10000Times |
Remark: The above data are for reference only.

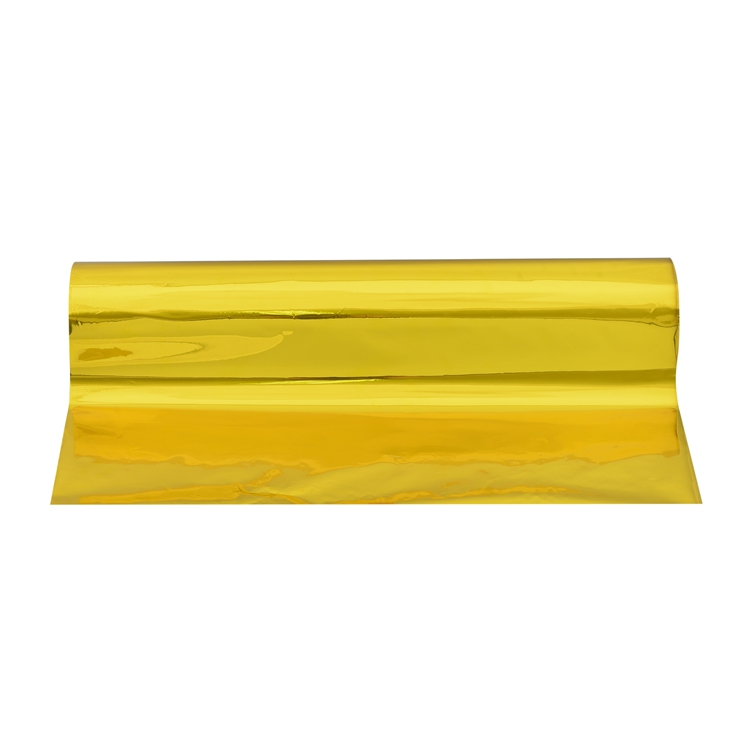

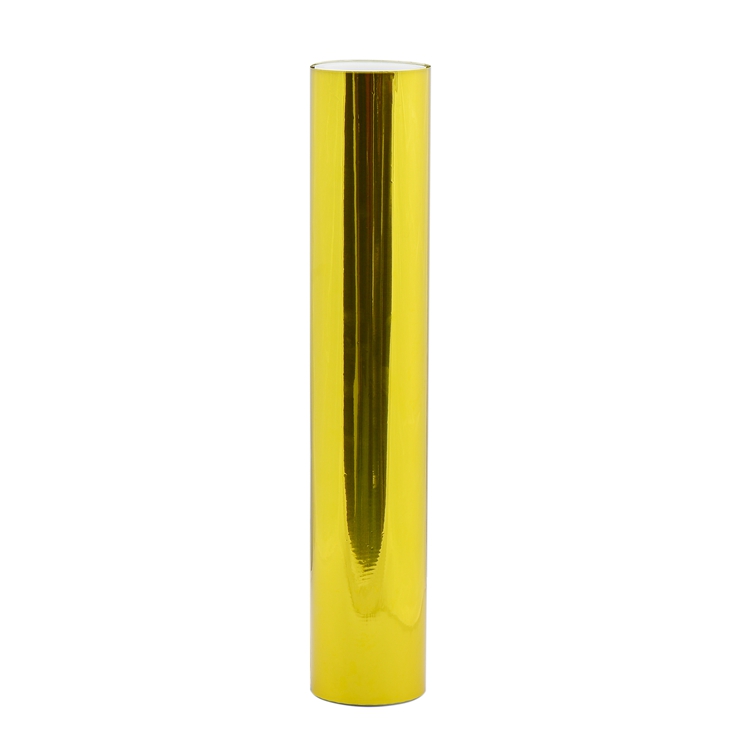

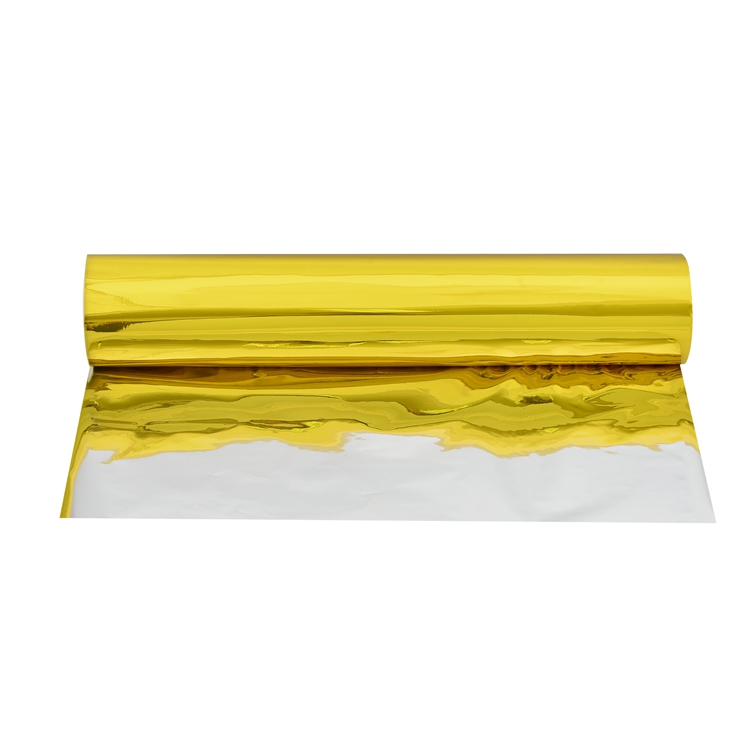

Pictures
Application
The high insulation coating PI film is suitable for High temperature shielding insulation, 5G Heat dissipation, coating with Epoxy as a shielding.
