JPT Formable Polyimide Sheet
Specification
JPT moldable polyimide thick plate is formed by JPT formable polyimide sheet by hot pressing, with thickness of 150um and 175um. The Polyimide Sheet can be used to replace the phenolic basin.
Features:
Sheet material, formable, environment-friendly with halogen free, highest UL-94 flammability rating:V-0
Parameters
Property | Unit | Test Value | Test Value | Test Method | |
Thickness | μm | 150±10μm | 175±15μm | ASTM D374 | |
Tensile Strength | MD | Mpa | ≥200 | ≥180 | ASTM D882 |
TD | Mpa | ≥105 | ≥100 | ASTM D882 | |
Elongation | MD | % | ≥30 | ≥30 | ASTM D882 |
TD | % | ≥105 | ≥105 | ASTM D882 | |
Surface resistivity | Ω | ≥1.0×1013 | ≥1.0×1013 | ASTM D257 | |
Dielectric Strength | KV | ≥9.0 | ≥10.0 | ASTM D149 | |
UL-94 flammability rating | - | 94V-0 | 94V-0 | - | |
Remark: The above data are for reference only.
Pictures

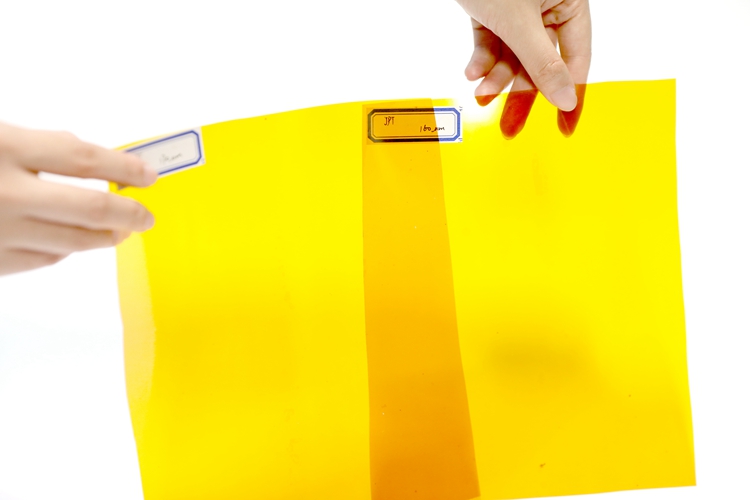

JPT Formable Polyimide Sheet
Application
Environment-friendly polyimide sheet is suitable for Large trumpet sound film, instead of phenolic sound basin
