JP Formable Polyimide Film

Type：JP
Thickness：25μm、38μm、50μm、75μm、100μm、125μm
Width：520mm
JP polyimide film is a kind of formable film with amber color, the thickness type is: 25μm、38μm、50μm、75μm、100μm、125μm. The best forming temperature should reach between 320℃-340℃, the pressure should be around 1MP(10kgs). Meanwhile, JP film can also preserve excellent performance with the physical, chemical, and mechanical properties as the CN type shows.

Send Inquiry Now

details

Specification

JP polyimide film is a kind of formable film with amber color, the thickness type is 25μm、38μm、50μm、75μm、100μm、125μm. The best forming temperature should reach between 320℃-340℃, the pressure should be around 1MP(10kgs). Meanwhile, JP film can also preserve excellent performance with the physical, chemical and mechanical property as the CN type shows.

Features：

Formable, environment-friendly with halogen-free, highest UL-94 flammability rating: V-0.

Parameters

Property		Unit	JP25	JP38	JP125	Test Method
Thickness		μm	25±3	38±3	125±8	ASTM D374
Width		mm	520			ASTM D374
Tensile Strength	MD	Mpa	≥280	≥265	≥220	ASTM D882
Tensile Strength	TD	Mpa	≥110	≥100	≥100	ASTM D882
Elongation	MD	%	≥25	≥30	≥30	ASTM D882
Elongation	TD	%	≥110	≥110	≥105	ASTM D882
Tensile Modulus		Gpa	≥3.5			ASTM D882
Continuous Serving Temperature		℃	＜260			ASTM D5213
Glass Transition Temperature		℃	300			ASTM D3418

Remark: The above data are for reference only.

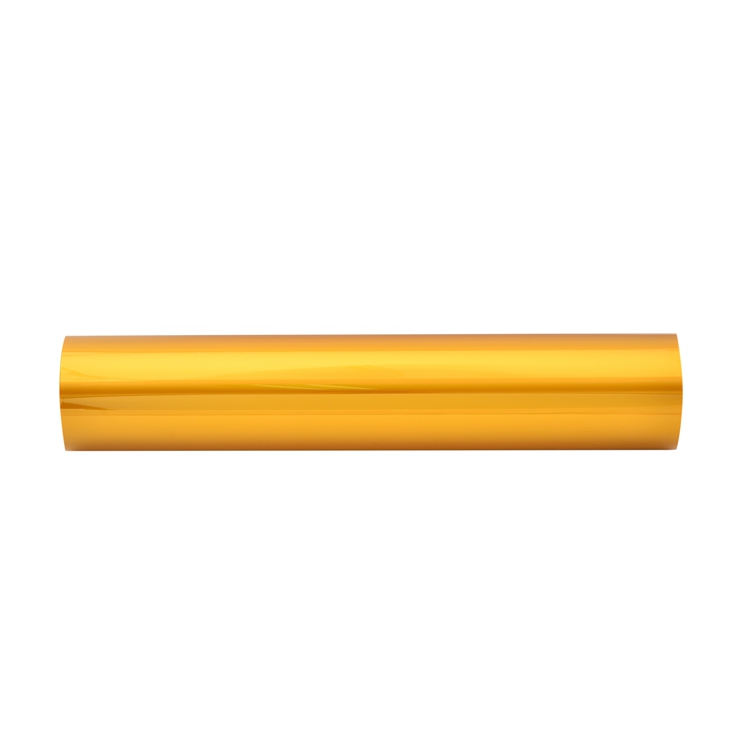

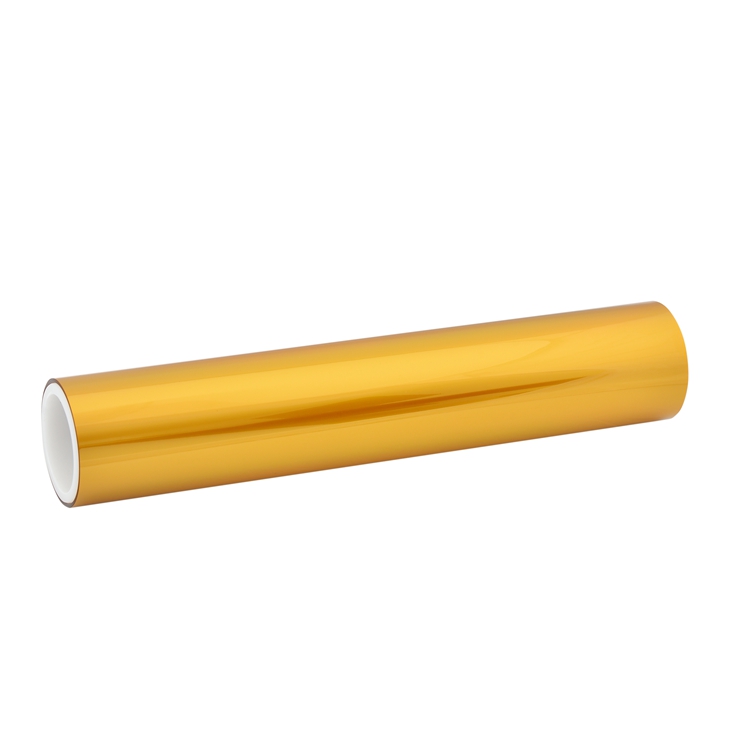

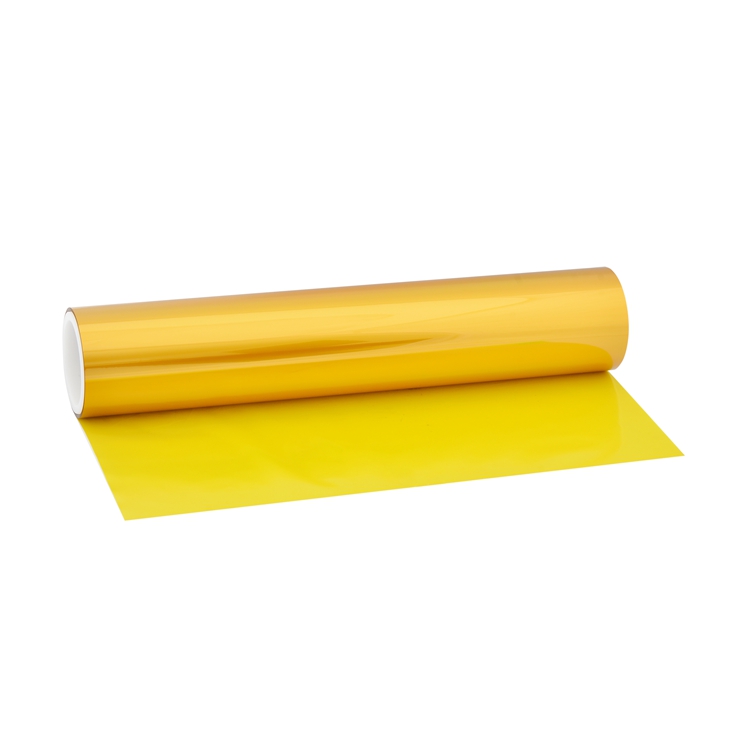

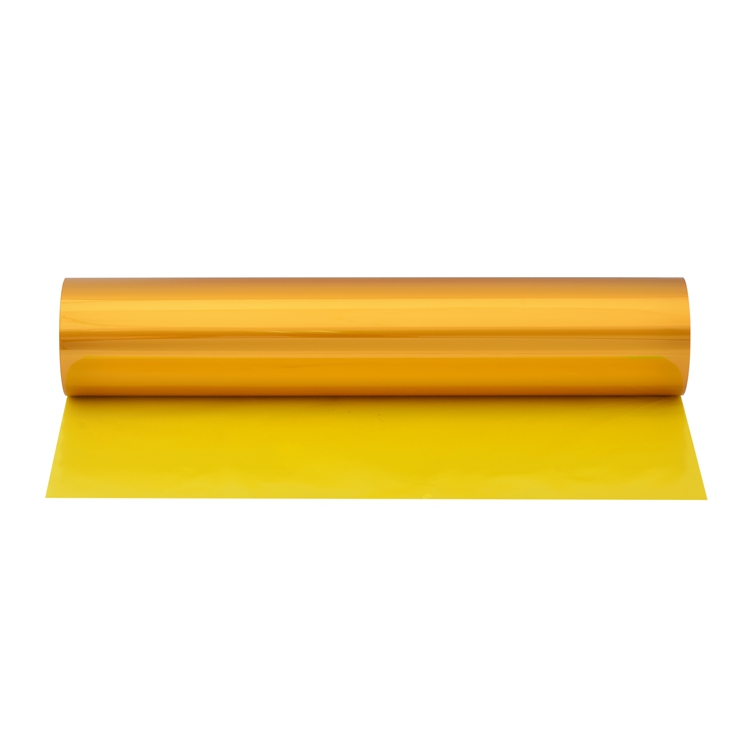

Pictures

Application

Amber JP polyimide film is suitable for louder speaker dome, thrust washer, gasket for machine.
