HTPI Far-Infrared Polyimide Flexible Heating Module
Specification
HTPI far-infrared polyimide flexible heating module is a polyimide composite material with high-temperature resistance, high mechanical properties, and high far-infrared radiation intensity. Formed by thermal pressing of polyimide heating film and polyimide insulation film, the conductive polyimide composite film and copper foil are firmly connected by thermal pressing. Adopting AC, DC at the same time, the electric heating temperature range is wide, strong controllability, heating up fast, rose to a high temperature in a short time, high cooling rate, power outages, quick downhill to room temperature, and component materials uniform temperature change, Polyimide flexible heating module also has the function of far infrared, emit far infrared ray has the function of physical therapy heating and fungicidal poison. In addition, for Chinese herbal medicine, agricultural products, seafood drying, nutritional ingredients are well preserved.

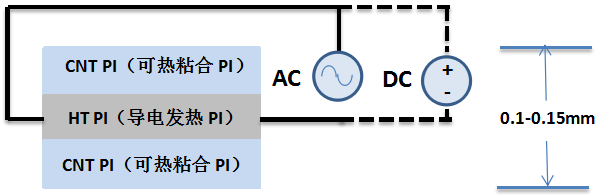

Structure:
Feature:
Flexible and light weight
Flexible size design
The current maximum size is 500mm*1200mm.
Continuous heating temperature range is wide, heating temperature up to 350℃.
he electrothermal conversion is up to 99%. Compared with the resistance wire, the same power can save 30%
Fast heating.
Thermal volume small, instantly when the power is down to room temperature.
Uniform heating temperature, voltage can from 3 v to 380 v (AC/DC).
It emits far infrared when heated, with a wavelength of 9-12 μm.
Bactericidal effect.
Don't kick over at work, electrode firmly, don't fall off, not hierarchical.
Explosion-proof, flame retardant 94v-0.
Green environmental protection, in line with the European Union Rohs and Reach safety standards.
Chemical protection.
Strong radiation resistant function.

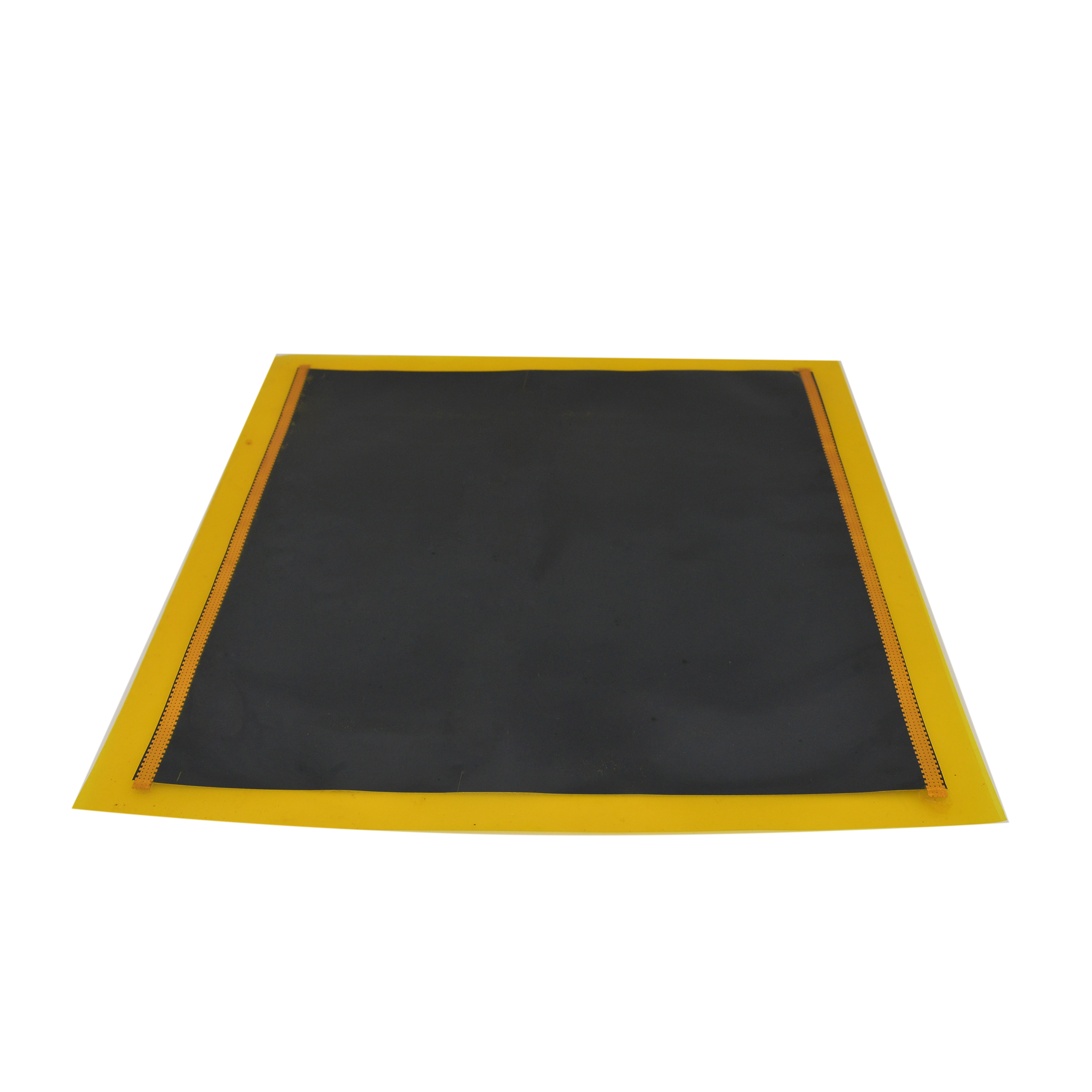

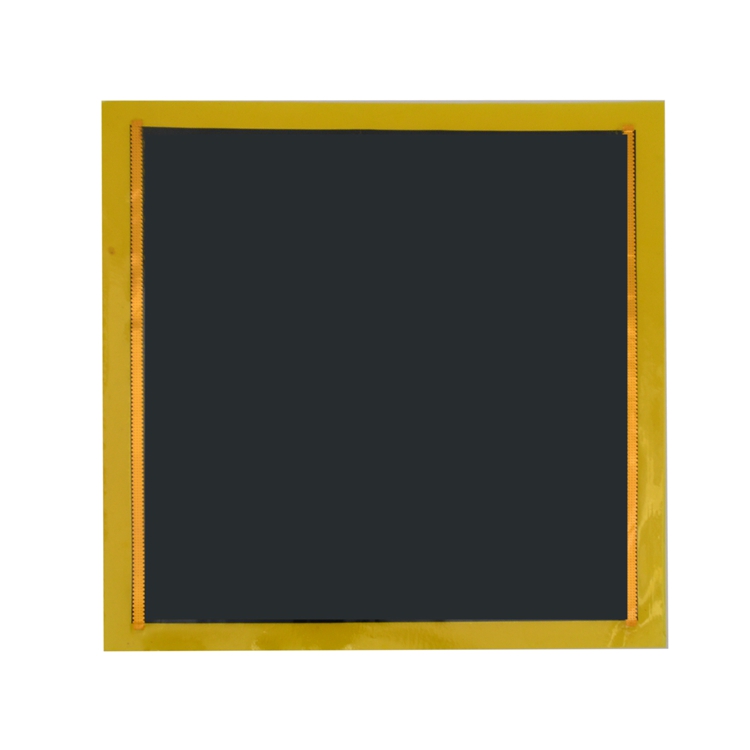

Pictures

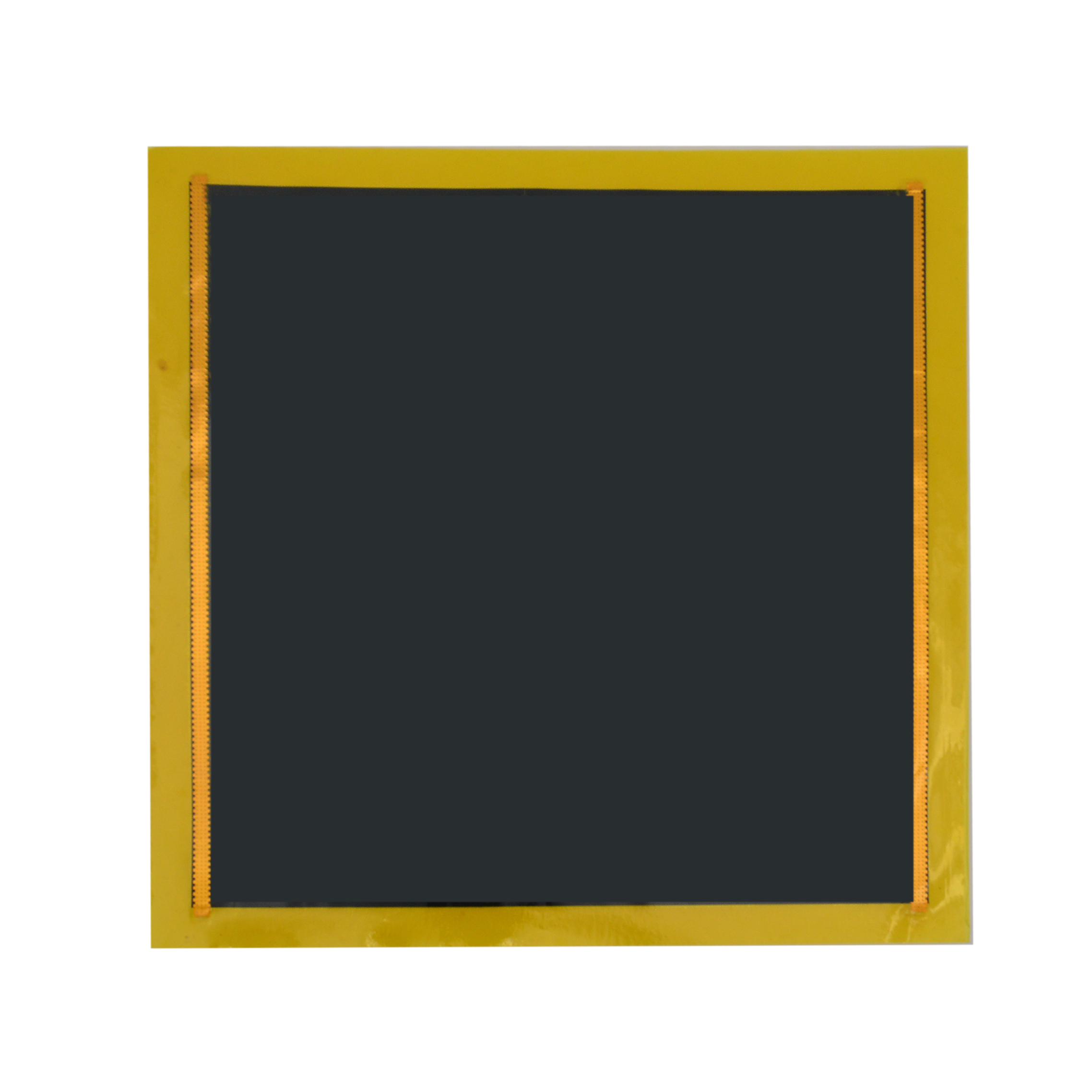

![Far-Infrared Polyimide Flexible Heating Module Far-Infrared Polyimide Flexible Heating Module](../28201/2020/05/19/HTPI-2-1589856966000.jpg)
![Far-Infrared Polyimide Flexible Heating Module Far-Infrared Polyimide Flexible Heating Module](../28201/2020/05/19/HTPI-4-1589856998000.png)
![Far-Infrared Polyimide Flexible Heating Module Far-Infrared Polyimide Flexible Heating Module](../28201/2020/05/19/HTPI-4-1589857009000.png)
Application
Vacuum heating and drying equipment, used for the drying of Chinese herbal medicine, agricultural products and seafood.
Heating sheet of power battery in new energy electric vehicle.
Military fields, such as missiles, ships, tanks, radars.
Snow removal, defrost heating element for antenna or radar.
Heating applications on medical equipment.
Other heating equipment for medium and high temperature applications.
