HTPF Far-Infrared Polyimide Rigid Heating Module

Specification

HTPF far-infrared polyimide rigid heating module and far-infrared polyimide flexible heating module principle and technology is the same, the biggest difference is the thickness, far-infrared polyimide rigid heating module referred to as far-infrared polyimide heating plate, has other characteristics of flexible heating module except bending and folding, can also be used for physiotherapy heating, sterilization function. Or drying Chinese herbal medicine, agricultural products, seafood and so on.

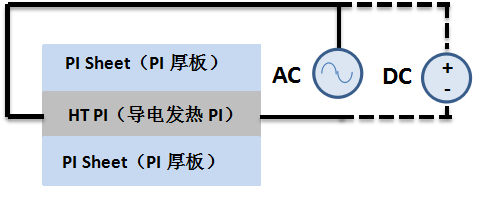

Structure:

Feature:

Flexible size design.

The current maximum size is 500mm*1200mm.

Continuous heating temperature range is wide, heating temperature up to 350℃.

The electrothermal conversion is up to 99%. Compared with the resistance wire, the same power can save 30%.

Fast heating.

Thermal volume small, instantly when the power is down to room temperature.

Uniform heating temperature, voltage can from 3 v to 380 v (AC/DC).

It emits far infrared when heated, with a wavelength of 9-12 μm.

Bactericidal effect.

Don't kick over at work, electrode firmly, don't fall off, not hierarchical.

Explosion-proof, flame retardant 94v-0.

Green environmental protection, in line with the European Union Rohs and Reach safety standards.

Chemical protection.

Strong radiation resistant function.

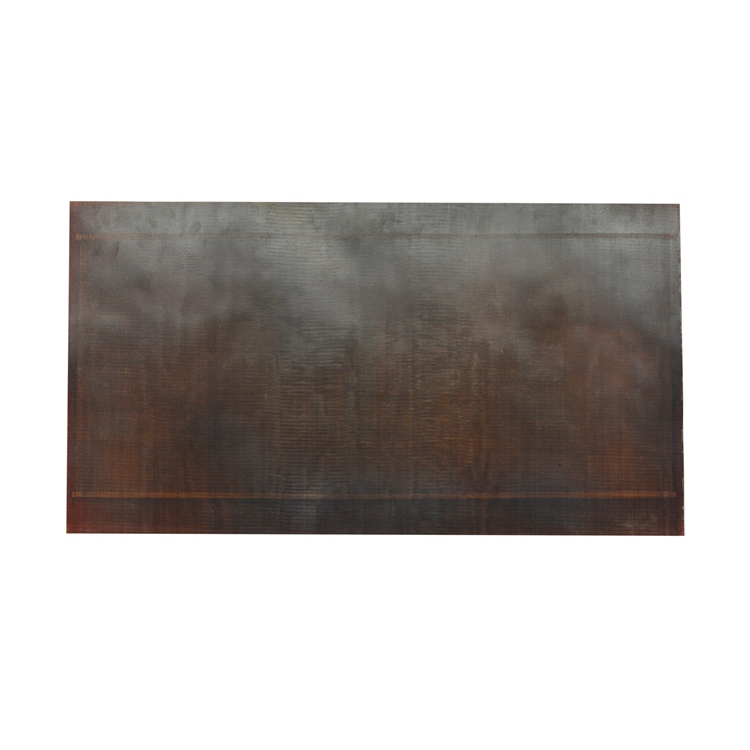

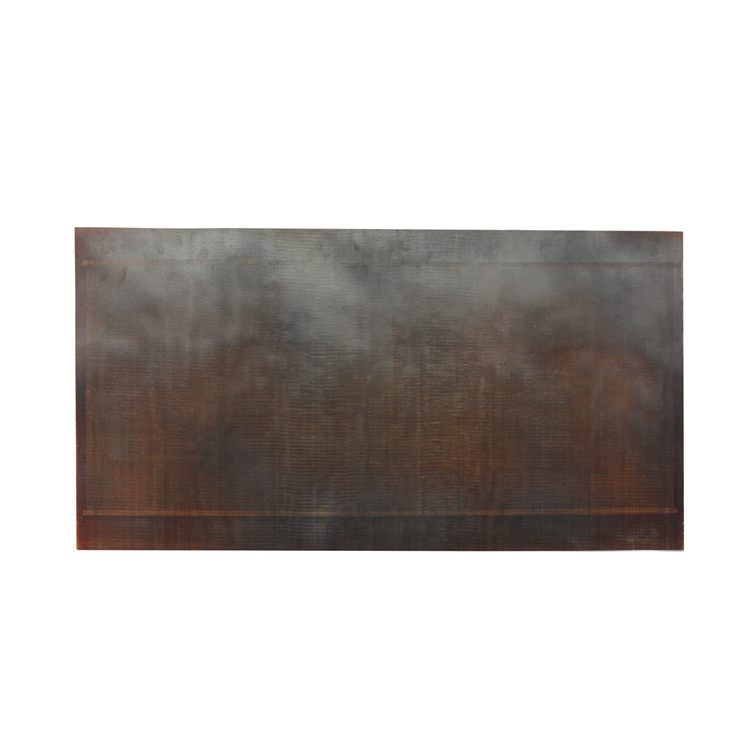

Pictures

Application

Vacuum heating and drying equipment, used for the drying of Chinese herbal medicine, agricultural products and seafood.

Heating sheet of power battery in new energy electric vehicle.

Military fields, such as missiles, ships, tanks, radars.

Snow removal, defrost heating element for antenna or radar.

Heating applications on medical equipment.

Other heating equipment for medium and high temperature applications.
