HT Electrically Heated Black Polyimide Film

Type:HT
Surface Resistant:60Ω、100Ω、120Ω、1000Ω、1200Ω
Width:520mm
HT is electrically conductive black polyimide film for heating applications. The surface resistivity is well controlled, the film resistive property is retained throughout the film. It cannot be cracked, rubbed off or easily damaged.

details

Specification

HT polyimide film is an electrically conductive black polyimide film for heating applications. The surface resistivity is well controlled, the film resistive property is retained throughout the film. It cannot be cracked, rubbed off, or easily damaged. HT black polyimide film as a heating film, it has performed with radiation-resistant, endurable to aging, flexible, untwists impatient, light material, long-lasting, the range of surface resistant is 60-2000Ω, Polyimide heating film can be widely used as protecting component for heating, heat protection, drying under 260℃, meantime, it uses about 70% electricity of the normal resistance wire.

Features:

The range of surface resistant is 60-2000Ω.

Parameters

Property

Unit

HT60

HT100

HT120

Test Method

Thickness

μm

50

40

40

ASTM D374

Width

mm

520

ASTM D374

Tensile Strength

Mpa

90

ASTM D882

Elongation

%

10

ASTM D882

Surface resistivity

Ω

60

100

120

ASTM D257

Surface resistivity control range

%

±10

-

Continuous working temperature

260

ASTM D5213

                                                   Remark:The above data are for reference only.

Pictures

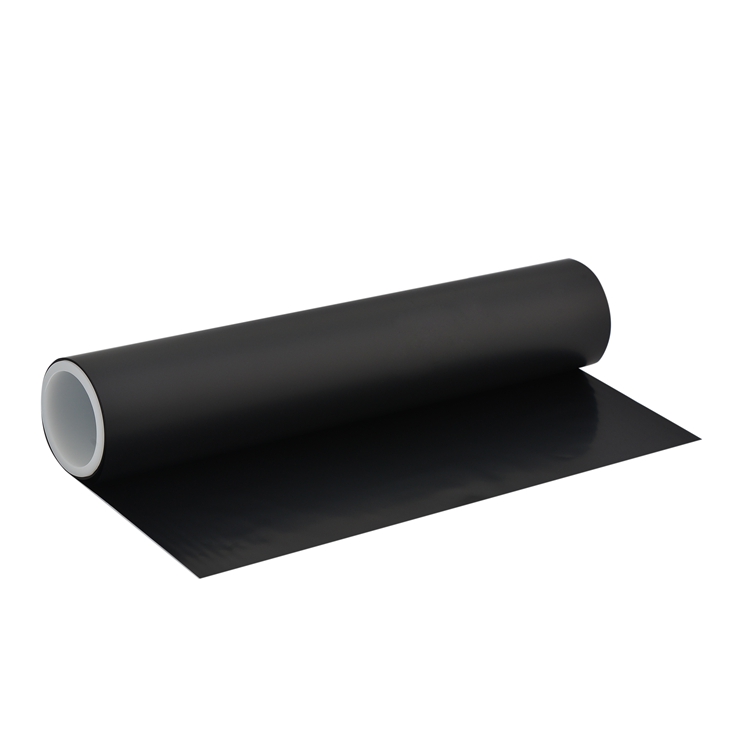

 HT Electrically Heated Black Polyimide Film

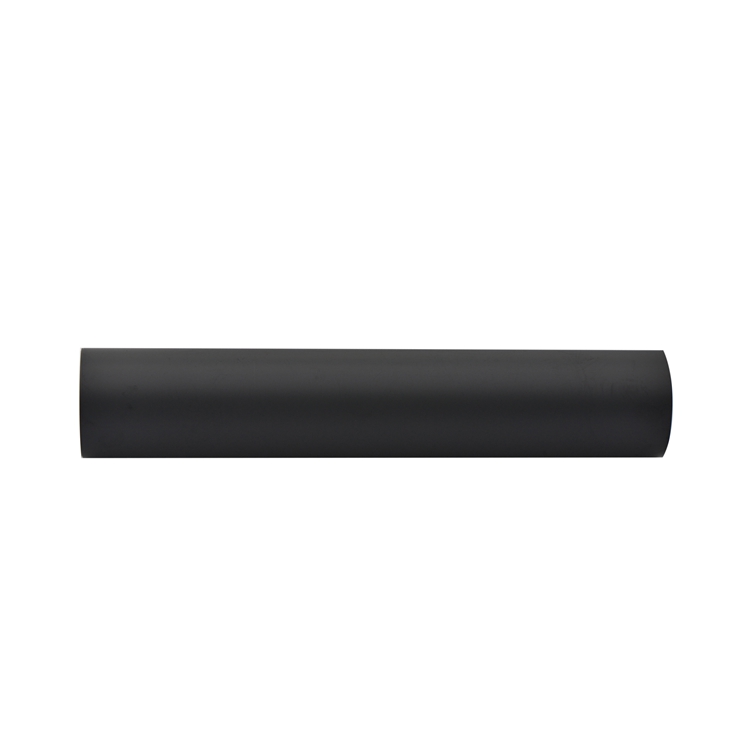

HT Electrically Heated Black Polyimide Film

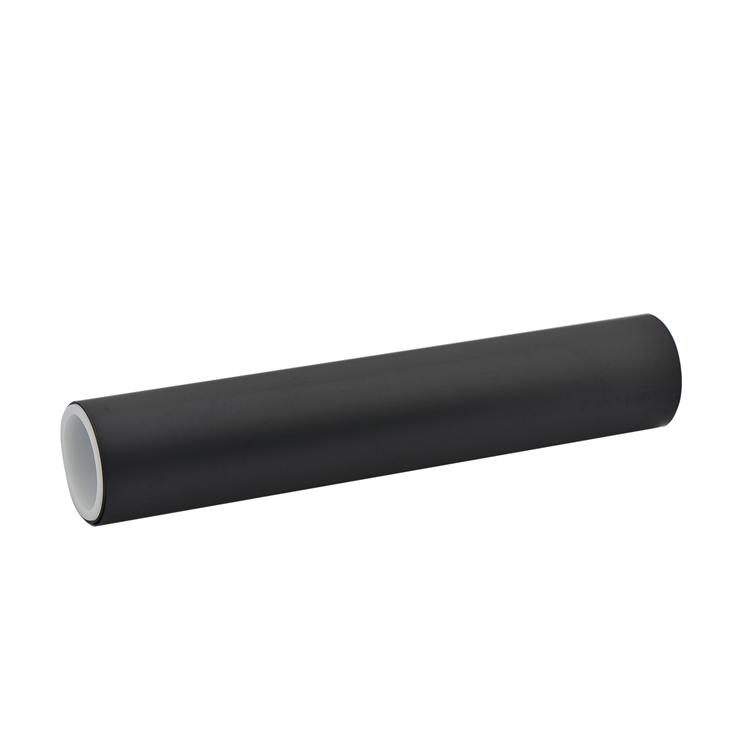

 HT Electrically Heated Black Polyimide Film

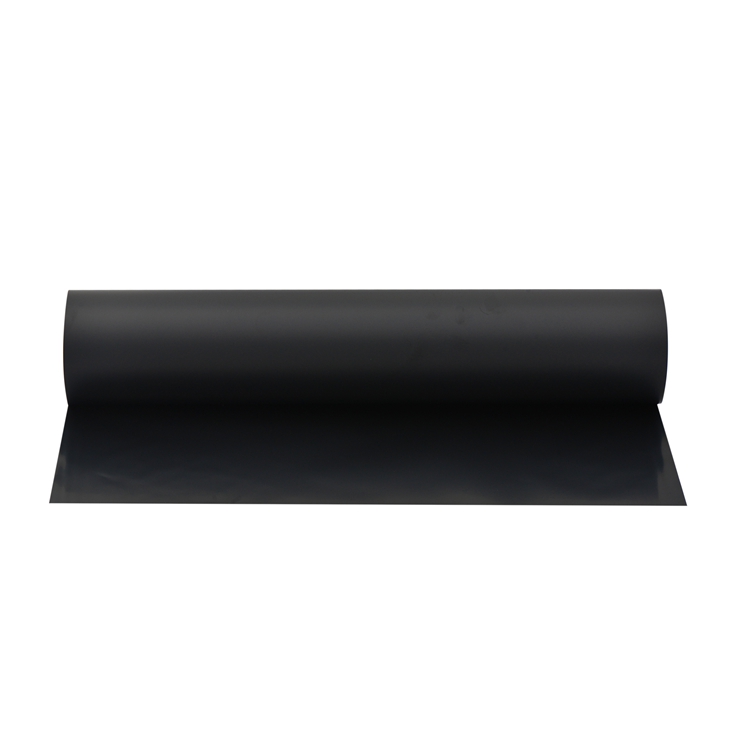

HT Electrically Heated Black Polyimide Film
 HT Electrically Heated Black Polyimide Film
HT Electrically Heated Black Polyimide Film
 HT Electrically Heated Black Polyimide Film
HT Electrically Heated Black Polyimide Film

Application

The endurable to aging polyimide film is suitable for Heater, the heating facility for automotive, health care, agriculture, aerospace, and consumer electronics.
