CNT Single-Side Thermocompression Bonding Polyimide Film
Specification
CNT Thermocompression bonding polyimide film is made up of CN coating CBDF, under certain temperatures and pressure, one side will produce viscosity due coating CBDF. Not only has the characteristics of polyimide film, but it also has more excellent performances in bonding strength.
Features:
Single adhesive, environment-friendly with halogen-free, highest UL-94 flammability rating: V-0.
Structure：
Parameters
Property | Unit | CNT25 | CNT50 | CNT75 | CNT100 | Test Method | |
PI Thickness | μm | 25 | 50 | 75 | 100 | ASTM D374 | |
CBDF Thickness | μm | 5±1 | 5±1 | 5±1 | 5±1 | ASTM D374 | |
Total Thickness | μm | 30±3 | 55±3 | 80±5 | 105±6 | ASTM D374 | |
Width | mm | 500 | ASTM D374 | ||||
Tensile Strength | MD | Mpa | ≥150 | ≥135 | ≥135 | ≥135 | ASTM D882 |
TD | Mpa | ≥135 | ≥115 | ≥115 | ≥115 | ASTM D882 | |
Elongation | MD | % | ≥45 | ≥35 | ≥35 | ≥40 | ASTM D882 |
TD | % | ≥55 | ≥45 | ≥45 | ≥50 | ASTM D882 | |
Dielectric Strength | KV | ≥4.0 | ≥4.50 | ≥9.0 | ≥9.0 | ASTM D149 | |
Surface Resistivity | Ω | ≥1.0×1014 | ASTM D257 | ||||
Volume Resistivity | Ω·cm | ≥1.0×1014 | ASTM D257 | ||||
CBDF Glass Transition Temperature | ℃ | 217 | ASTM D3418 | ||||
Pressing Conditions | Single adhesive 320-330℃/5min, pressure 12kgf/cm² | ||||||
Remark: The above data are for reference only.

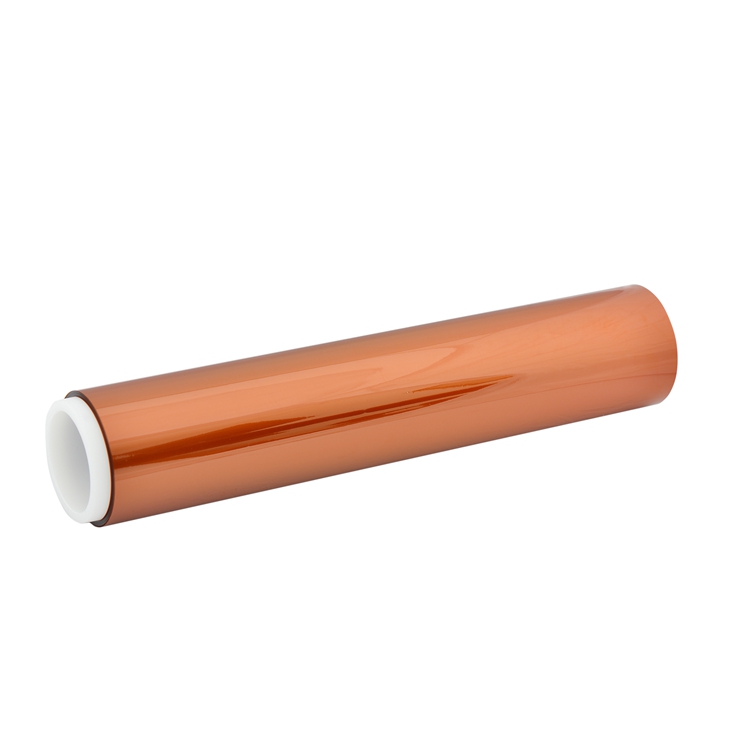

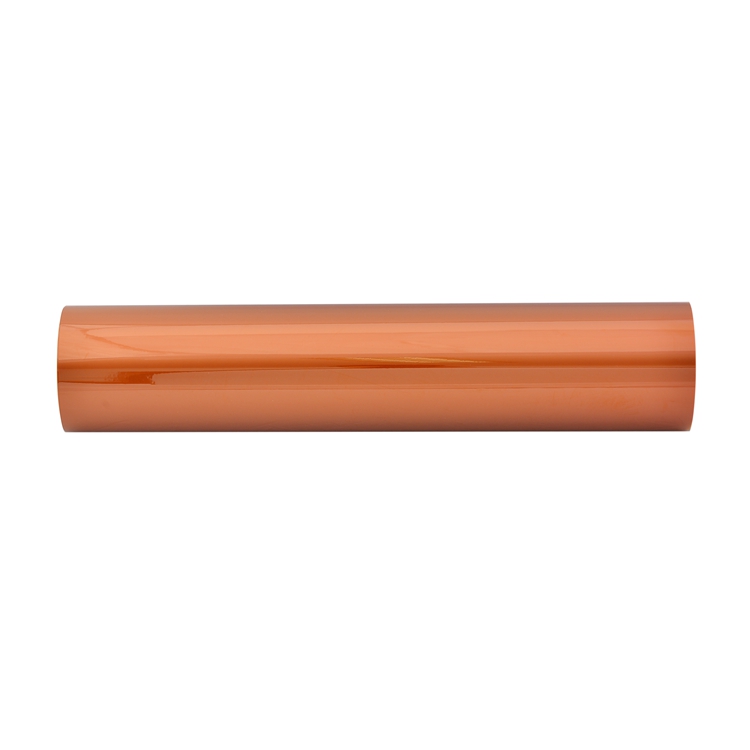

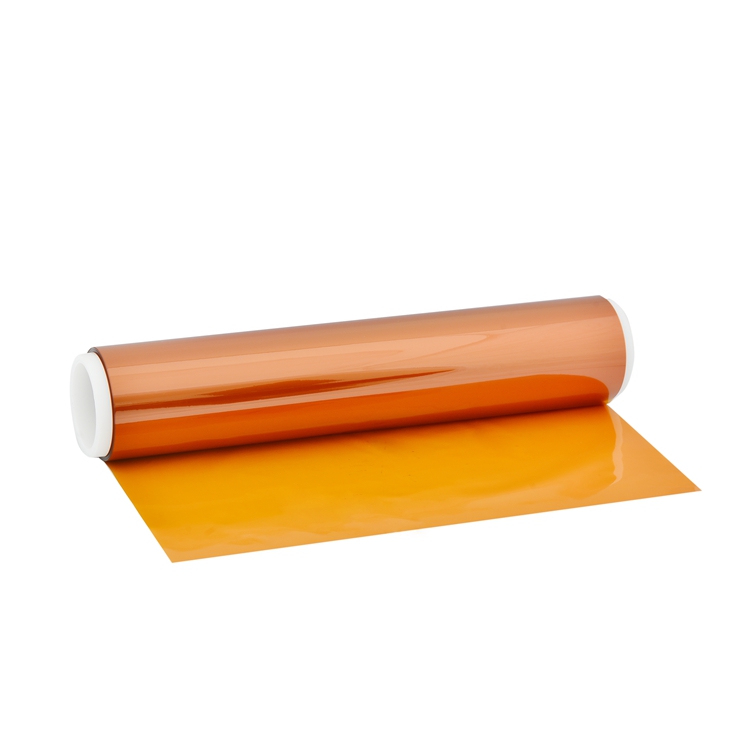

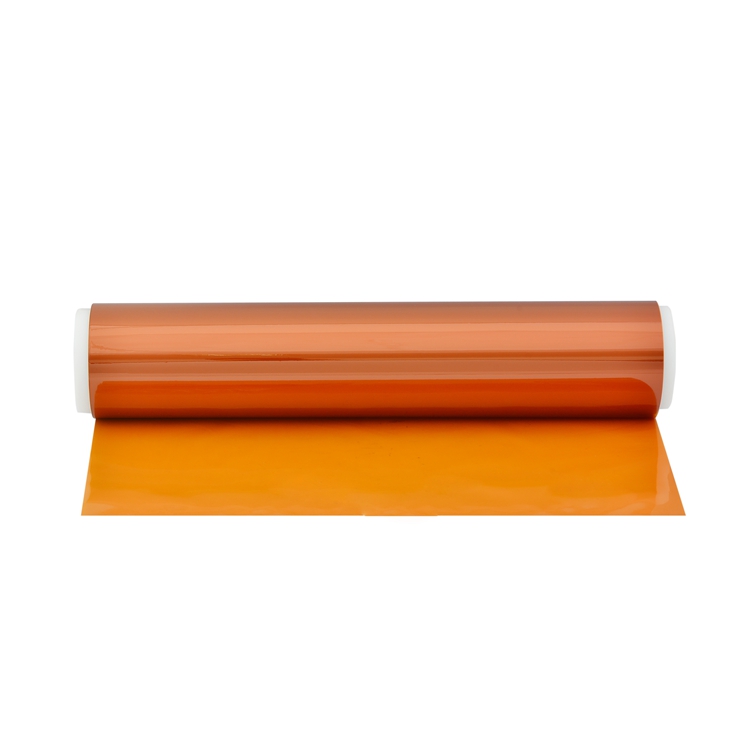

Pictures
Application
CNT Single-Side polyimide film using in bonding situations, heat bonding of PI film to the metal foil, thermal bonding of PI film, and PI film.
