CNSH Polyimide Sheet/Polyimide Board/Polyimide thick plate
Specification
CNSH polyimide sheet is formed by the superposition of CN polyimide film after heat pressing, the thickness can reach 300-1000 um, pure polyimide structure, hard to peel, and not stratified. The Polyimide Board is the perfect spacer material with the characteristics of high insulation, excellent mechanical properties, chemical stability, radiation resistance, and self-extinguishing. This Polyimide thick plate has the highest UL-94 flammability rating: V-0, and is environment-friendly with halogen-free, the content of heavy and other limited organic compound has reached the State protection Standard.
Features:
Sheet material, CNSH Polyimide Board has the same property as CN type.
Parameters
Property | Unit | Test Value | Test Method | |
Operating temperature（≥6 Hours） | ℃ | 300 | ASTM D5213 | |
Glass Transition Temperature | First peak | ℃ | 217 | ASYM D3418 |
Second peak | 380 | |||
Dielectric Strength | KV | ≥10.0 | ASTM D149 | |
Peel strength | Kgf/mm2 | 10 | - | |
UL-94 flammability rating | - | 94V-0 | - | |
Remark: The above data are for reference only.

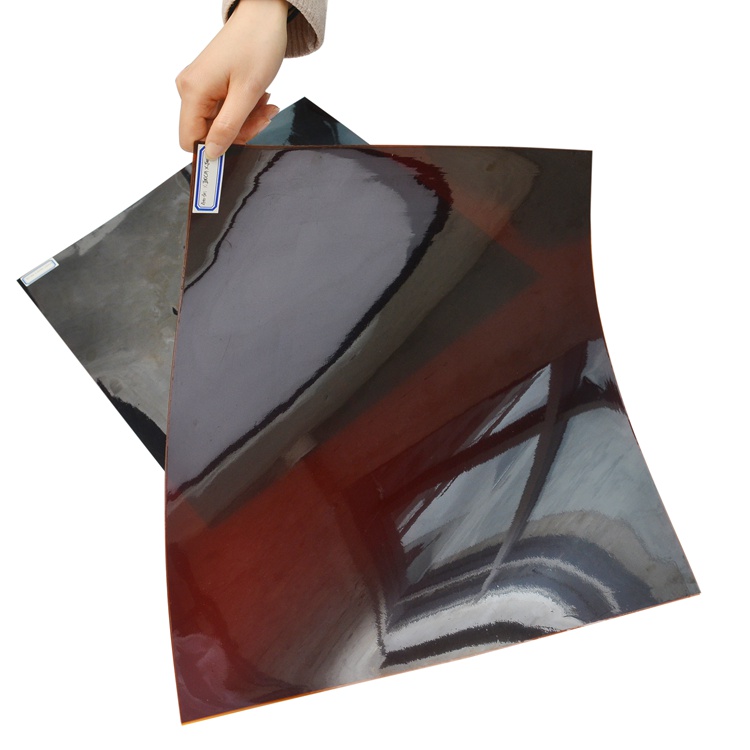

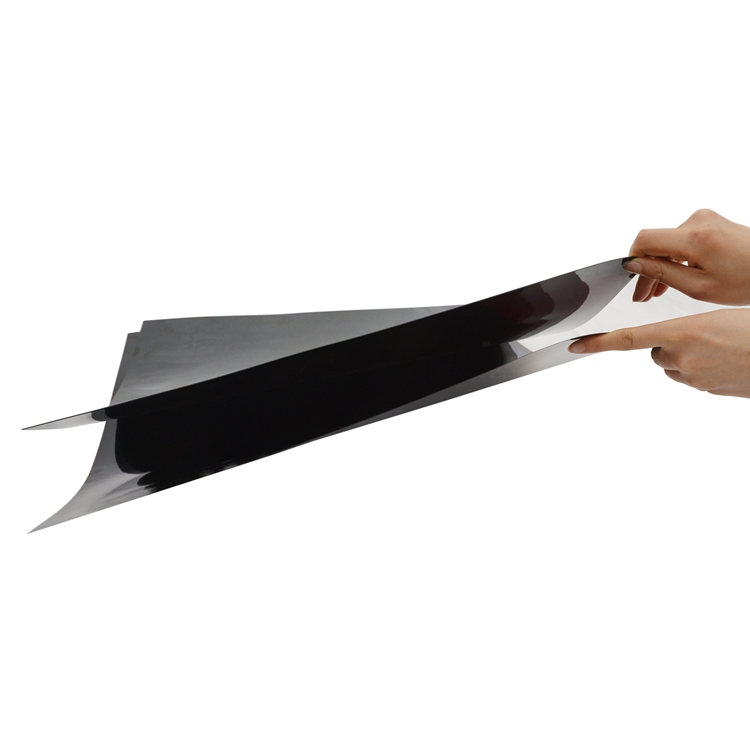

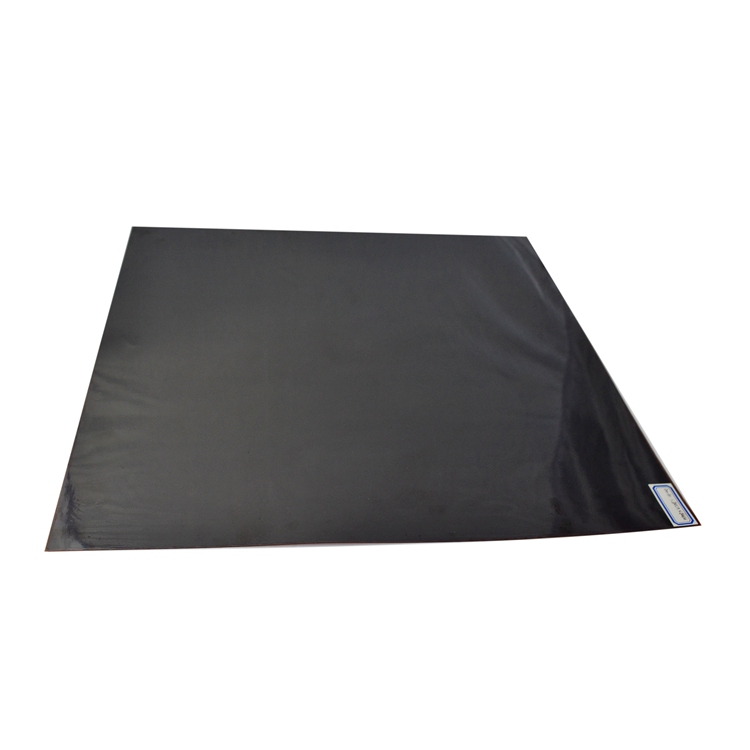

Pictures
Application
The high insulation polyimide sheet is suitable for Gasket, Spacer.
