CG Green Polyimide Film
Specification
Adding the green high-temperature resistant pigment into the polyamide acid to form a film, the overall appearance of green, uniform color distribution. The CG green polyimide film has the same property as CN type, heating-resistant, radiation-resistant, stable chemical reaction. We can supply 25um thickness of insulating green polyimide film. It is applied to high-temperature insulating tape, label or protection film and so on.
Features:
Green, it has the same property as CN type, environment-friendly with halogen-free, the green heating resistant polyimide film meet EU environmental standard such as RoHS, Reach.
Parameters
Property | Unit | CG251 | Test Method | |
Thickness | μm | 25±3 | ASTM D374 | |
Width | mm | 520 | ASTM D374 | |
Tensile Strength | MD | Mpa | ≥120 | ASTM D882 |
TD | Mpa | ≥100 | ASTM D882 | |
Elongation | MD | % | ≥25 | ASTM D882 |
TD | % | ≥40 | ASTM D882 | |
Dielectric Strength | KV | ≥1.5 | ASTM D149 | |
Operating temperature | ℃ | Short-term 400℃,260℃ for long time | ASTM D5213 | |
Remark: The above data are for reference only.

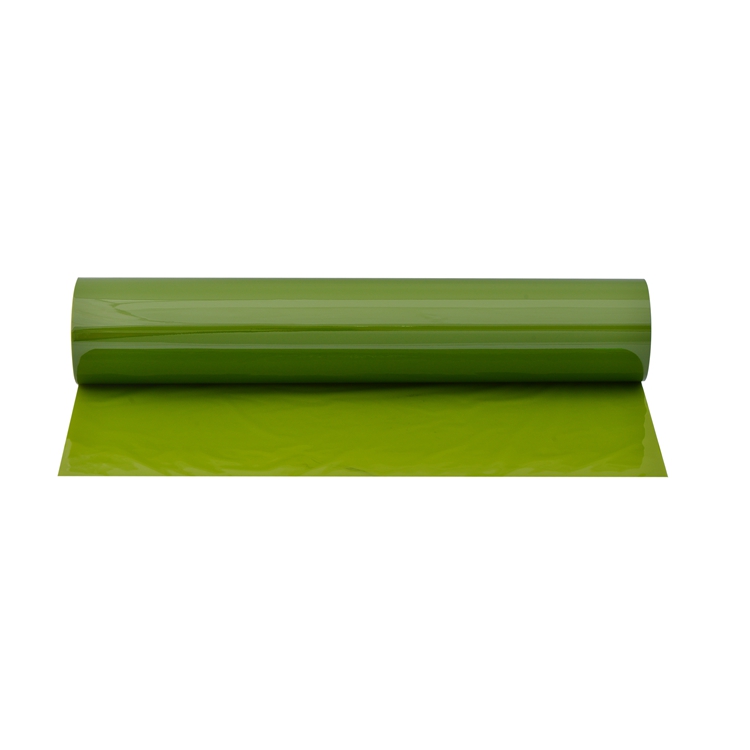

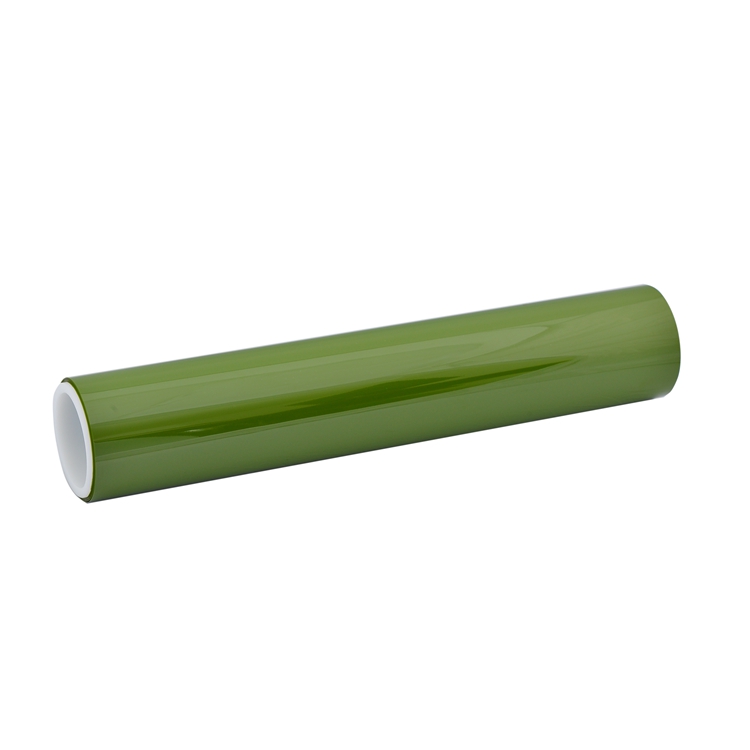

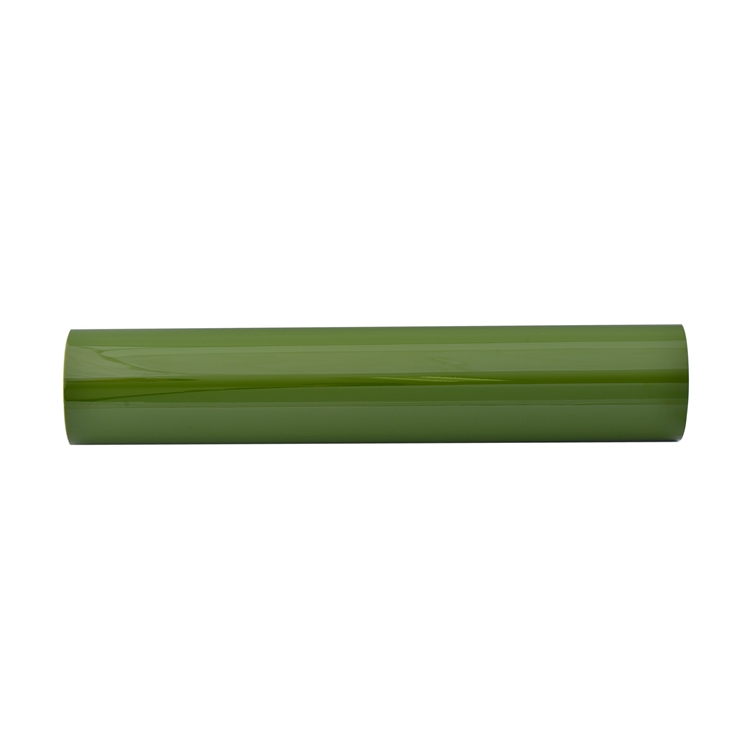

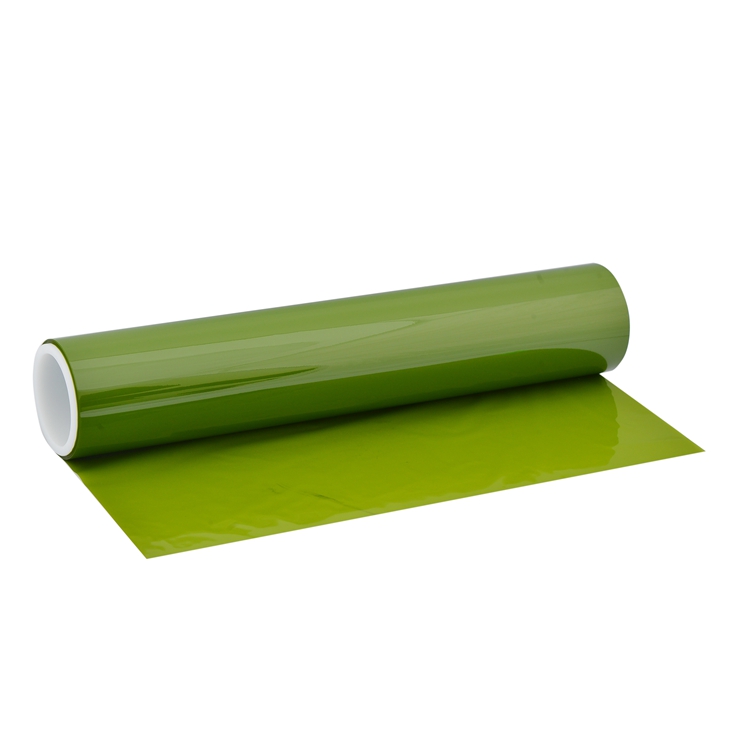

Pictures
Application
The Green PI film film is applied to the green heating resistant tape, high temperature color adhesive tape, green heating resistant label, heating resistant protective film and other special application.
