BPTCU Copper Foil Coating Black PI film
Specification
The copper foil coating PI film produced by our company is coated with black polyimide on one or both sides of the copper foil, without any adhesive, this coating black PI film can work for a long time at more than 200℃. It has excellent performance for electronic shielding. We can handle different shielded thermal conductive insulation materials according to the needs of customers. The thickness of copper foil can be 3um to 200um, and the thickness of the PI coating can be 5um to 25um. We can process various other metal foil or sheet, which can be customized according to customers' requirements.
Features:
High-temperature resistance, high insulation, flame retardant, impact resistance, bending resistance, solvent resistance, radiation resistance.
Structure:
Parameters
Property | Parameter | Test Value |
Copper Foil | Thickness | 6μm |
PI Polyimide Film | Thickness | 6μm |
Dielectric Strength of PI | 1.5KV | |
Peel strength | ≥10N/cm2 | |
Temperature Resistance | Drying at 280℃ for 30 minutes without foaming or shedding. No bubble after 30mins through Tin furnace(280℃) | PASS |
Solvent Resistance | Salt spray test | Corrosion Resistant |
Bend Performance | 180° | 100Times |
Adhesive Force | Cross-cut Test 1 MM | Non-shedding |
Abrasive Resistance | Paper bag wear-resisting | 10000Times |
Remark: The above data are for reference only.

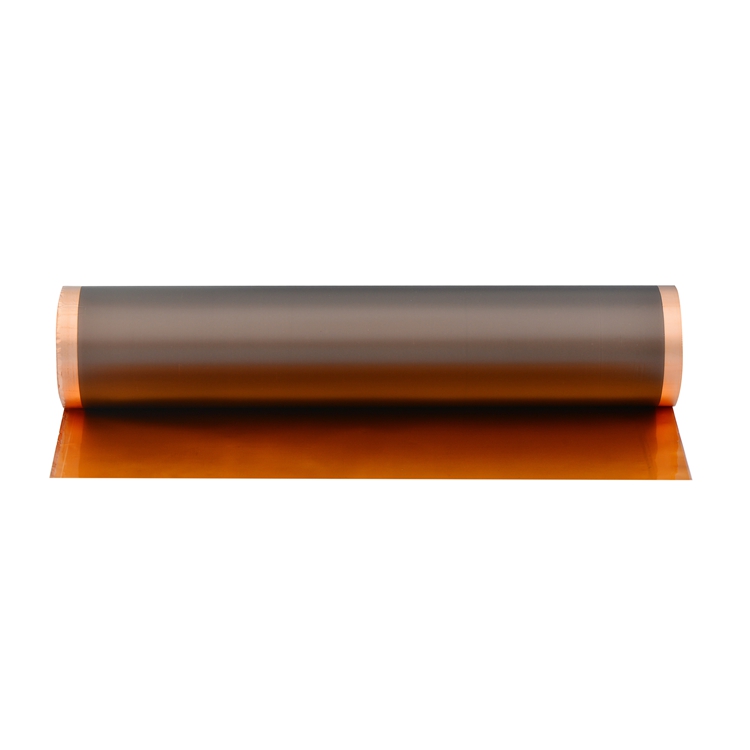

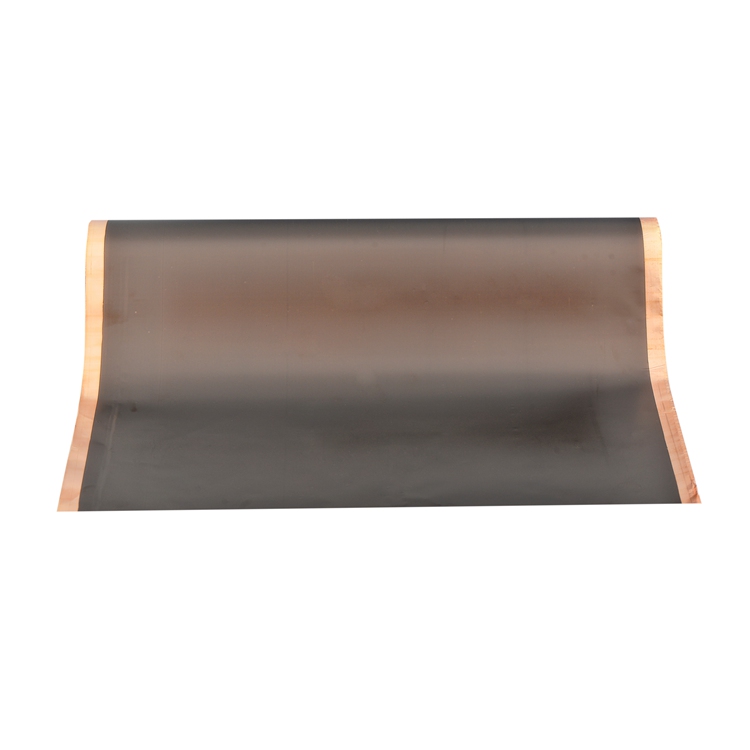

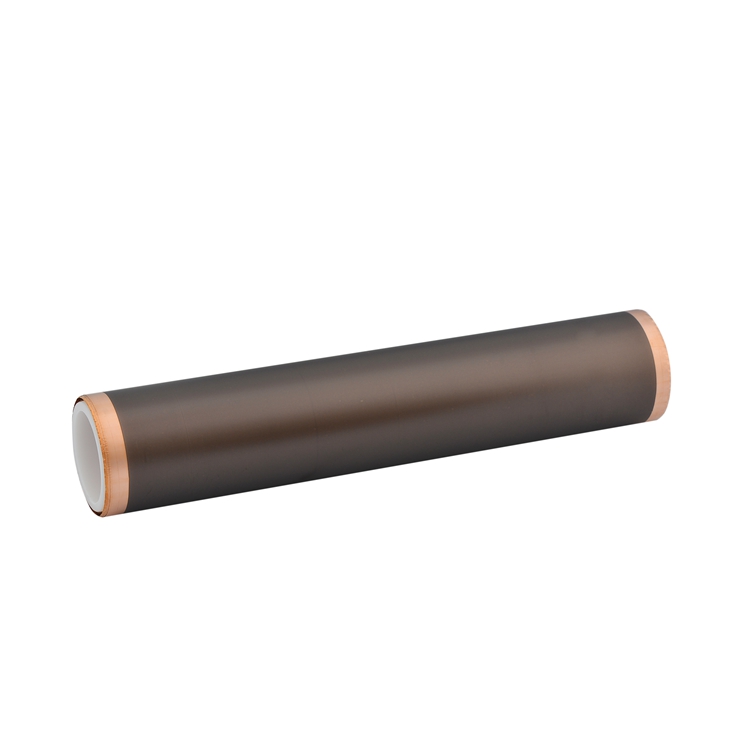

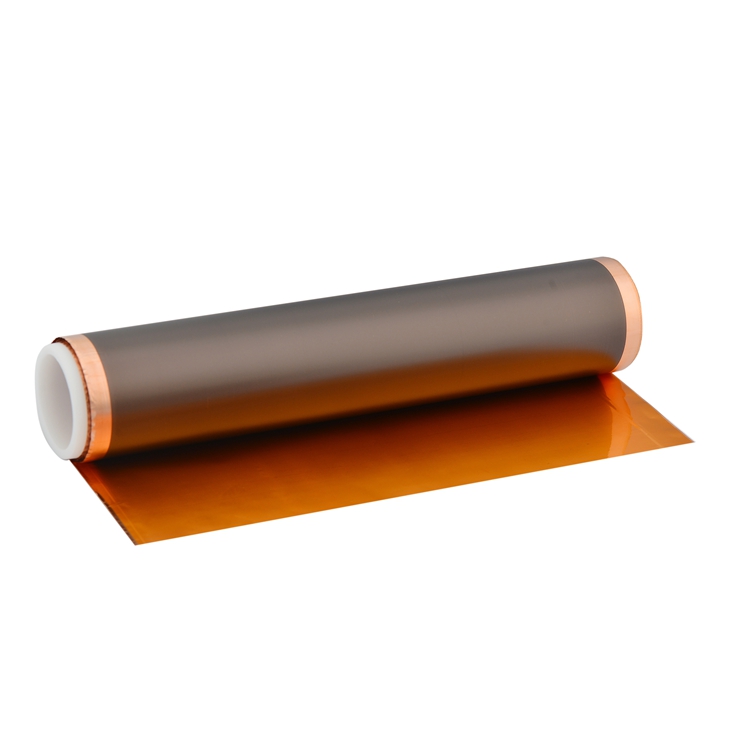

Pictures
Application
BPTCU coating PI film is suitable for High temperature shielding insulation, 5G Heat dissipation, coating with Epoxy as a shielding.
