60MT High Thermal-Conducting Polyimide Film

Type：60MT
Size：
Thickness：25μm、38μm、50μm、75μm、100μm、
Width：520mm
On the basis of 36MT to further improve the thermal conductivity, thermal conductivity of 0.50w/m.k higher thermal conductivity of polyimide film material. It is widely used in the new energy automobile industry.

Send Inquiry Now

details

Specification

On the basis of 36MT to further improve the thermal conductivity, the thermal conductivity of 0.50w/m.k higher thermal conductivity of polyimide film material. 60MT Polyimide Film is widely used in the new energy automobile industry.

Features:

High thermal conductivity, heat resistant, RoHS Compliance, UL-94 flammability rating: V-0.

Parameters

Property		Unit	60MT25	60MT 38	60MT50	Test Method
Thickness		μm	25±3	38±3	100±8	ASTM D374
Width		mm	520			ASTM D374
Tensile Strength	MD	Mpa	≥110	≥110	≥100	ASTM D882
Tensile Strength	TD	Mpa	≥100	≥100	≥90	ASTM D882
Elongation	MD	%	≥35	≥30	≥30	ASTM D882
Elongation	TD	%	≥45	≥35	≥35	ASTM D882
Dielectric Strength		KV	≥3.0	≥3.5	≥4.5	ASTM D149
Thermal conductivity		W/m.k.	≥0.50			ASTM D5470
Operating temperature		℃	Short-term 400℃.260℃ for long time			ASTM D5213

Remark: The above data are for reference only.

Pictures

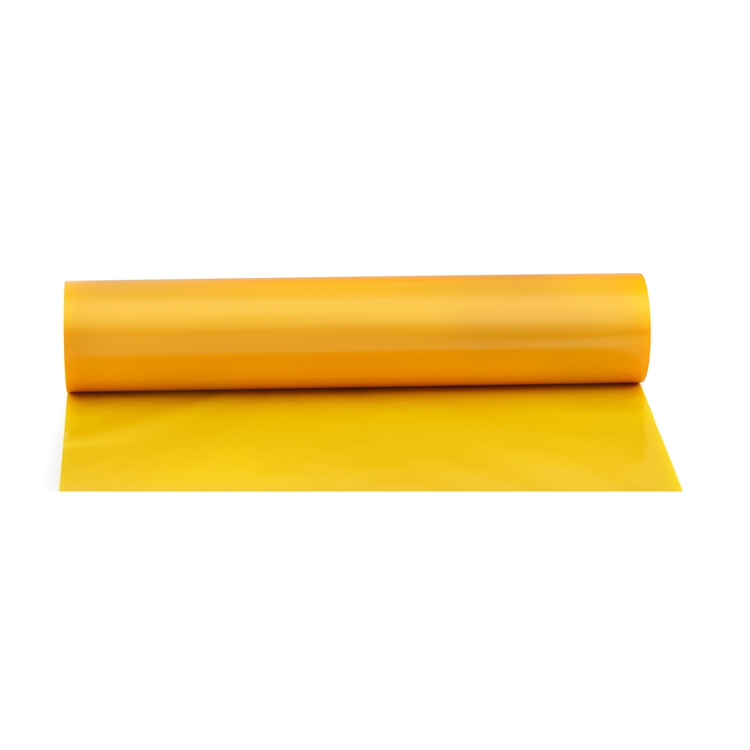

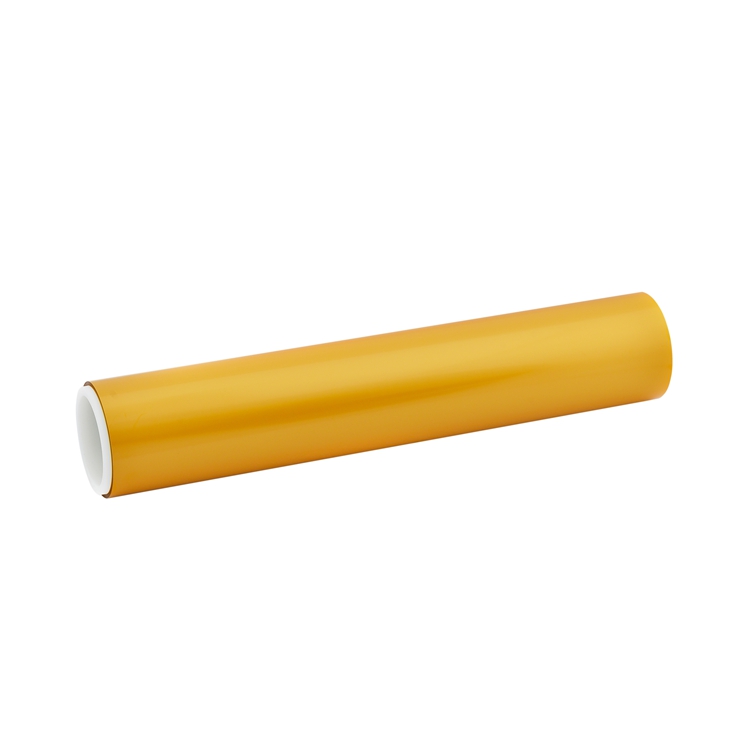

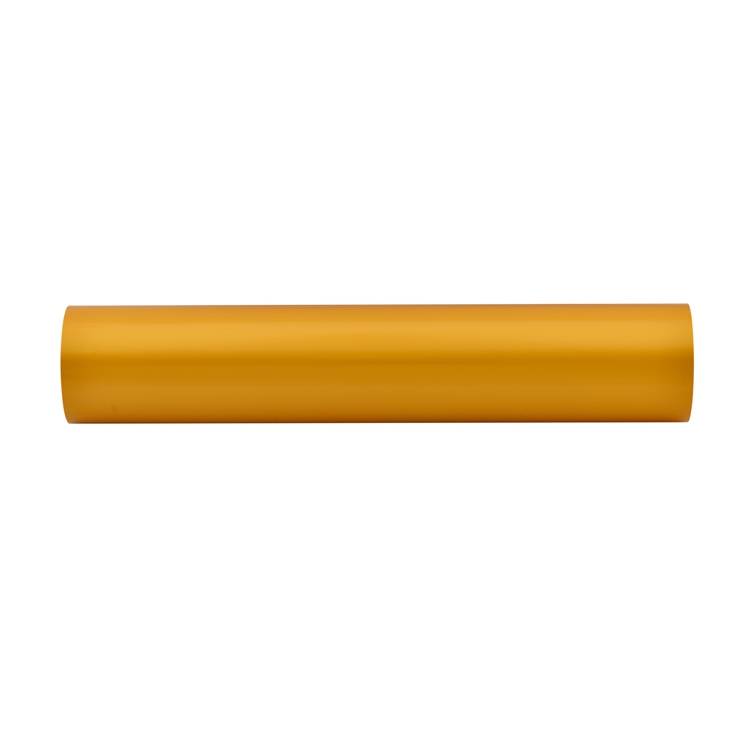

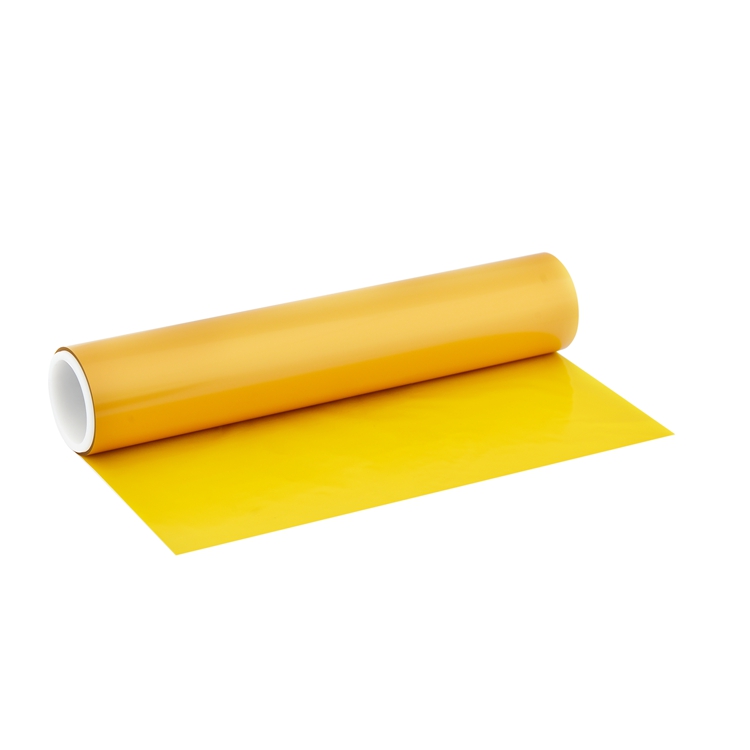

60MT High Thermal-Conducting Polyimide Film

Application

High thermal-conducting polyimide film is suitable for Insulation pads, heater circuits, power supplies ( battery, solar power).
